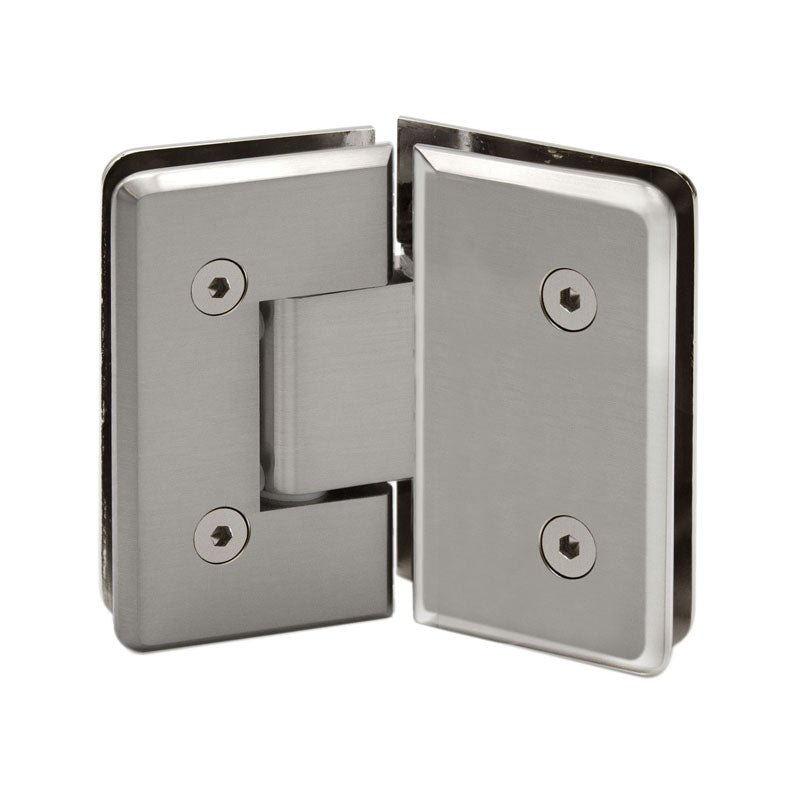

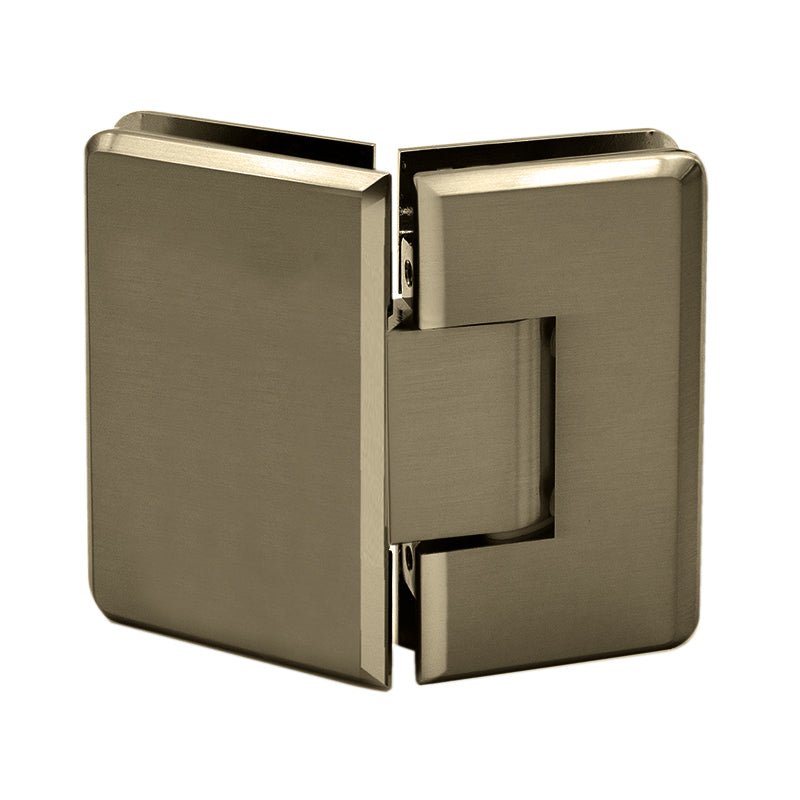

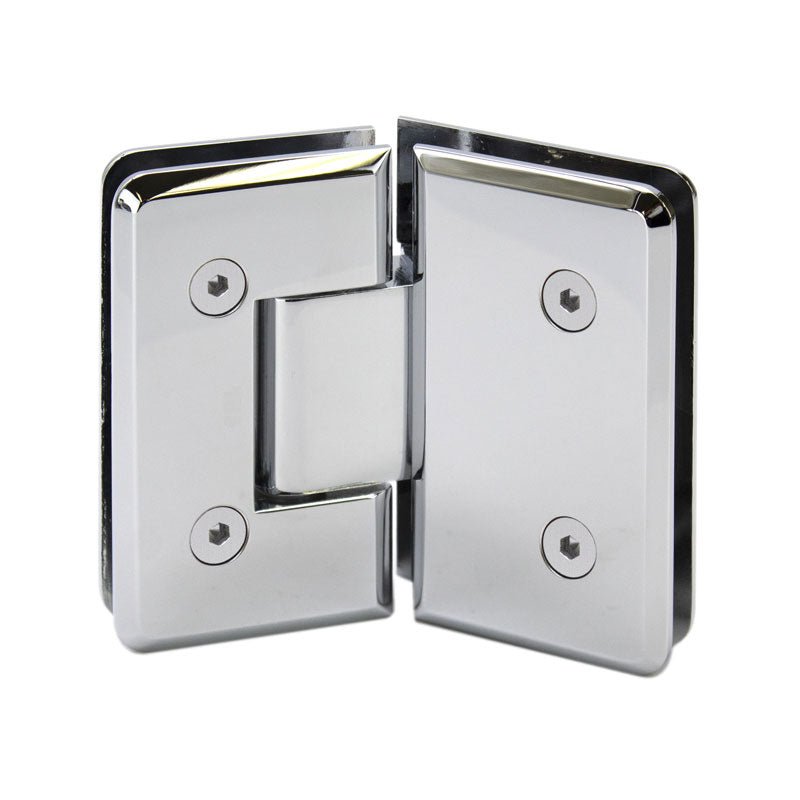

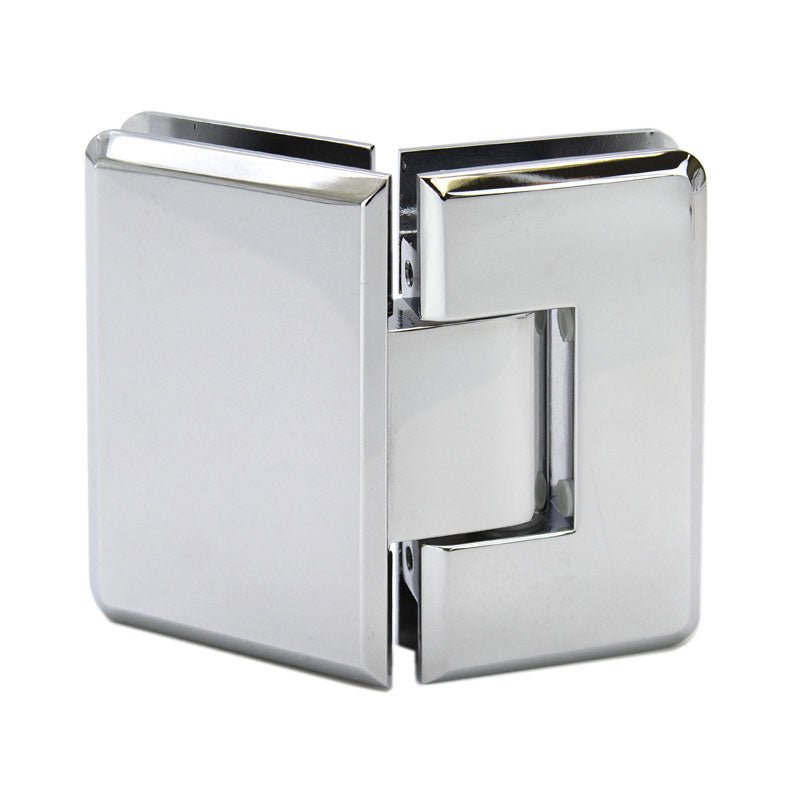

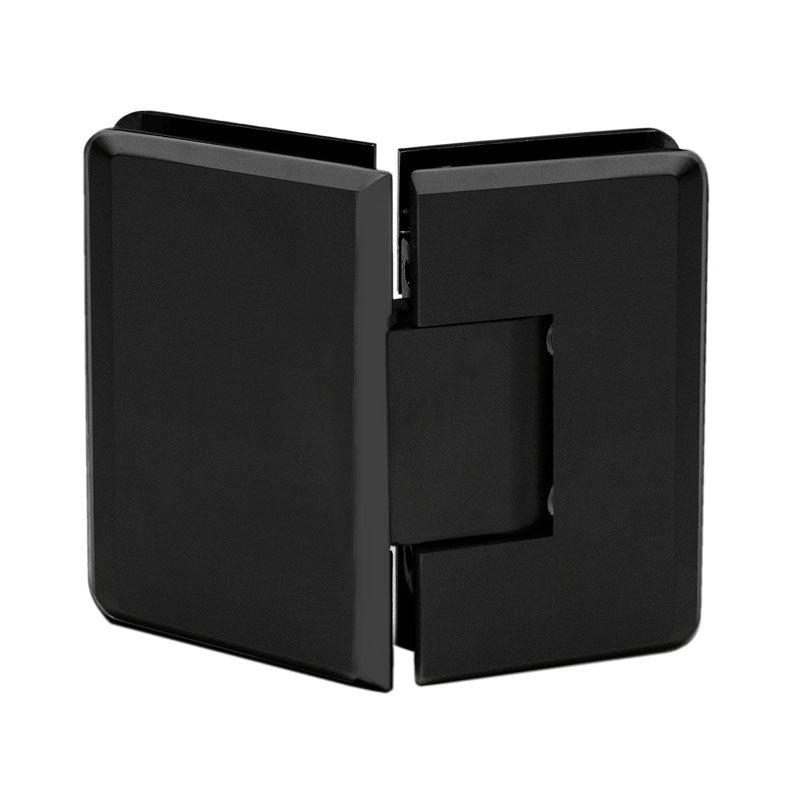

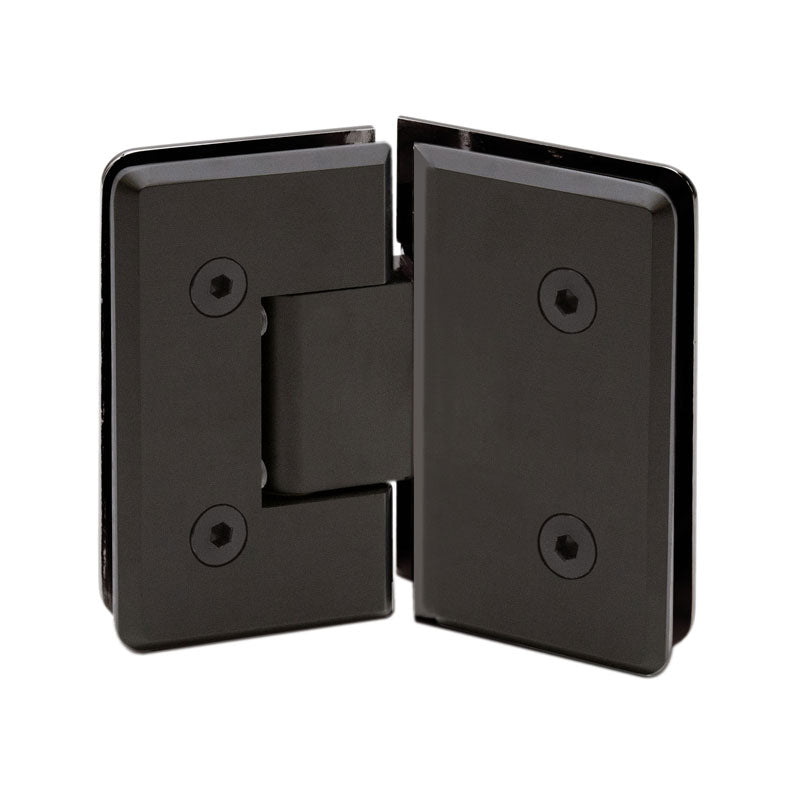

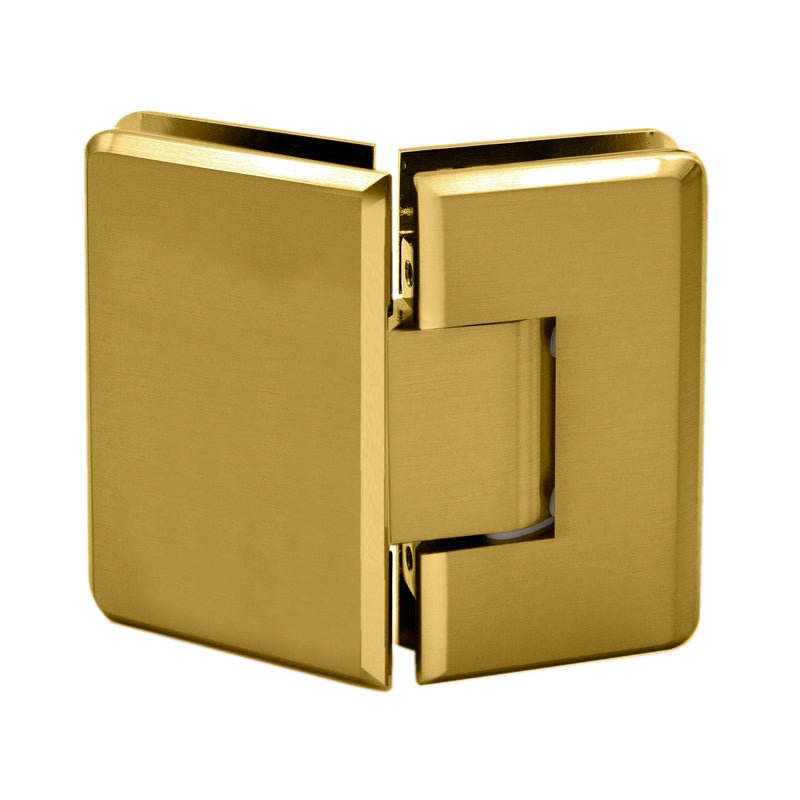

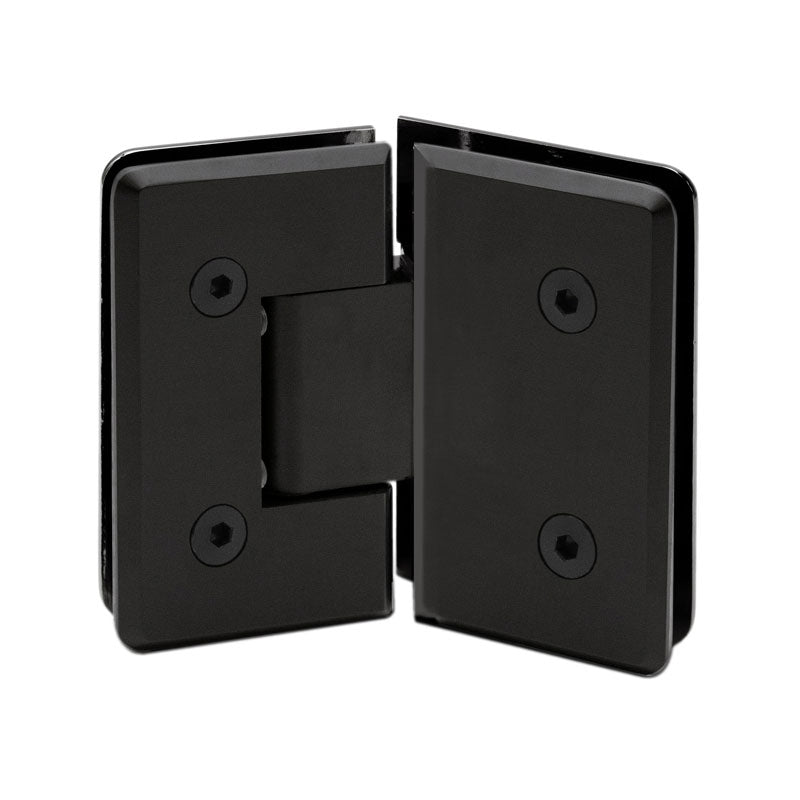

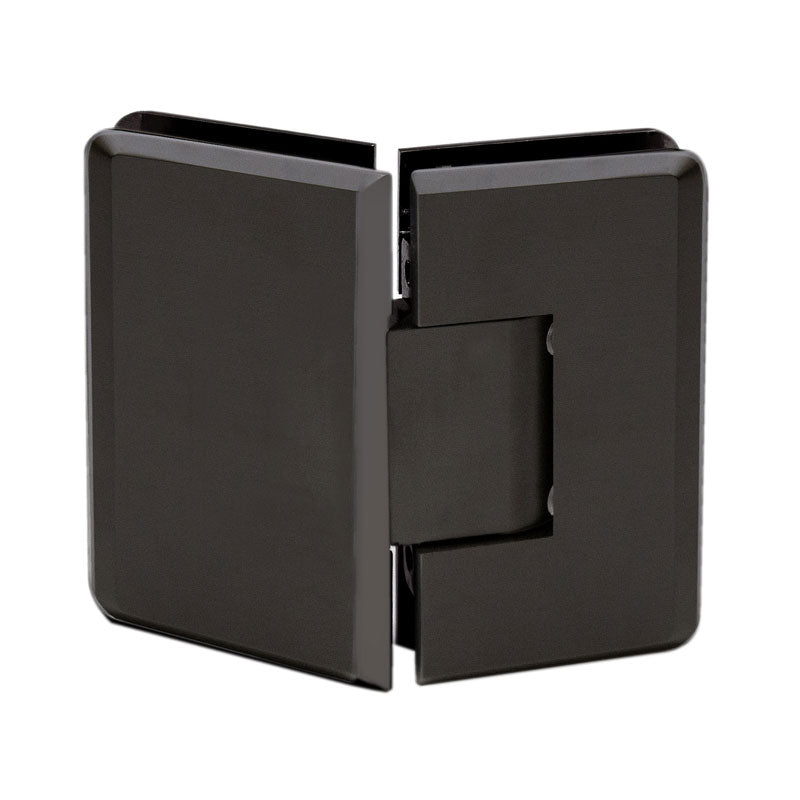

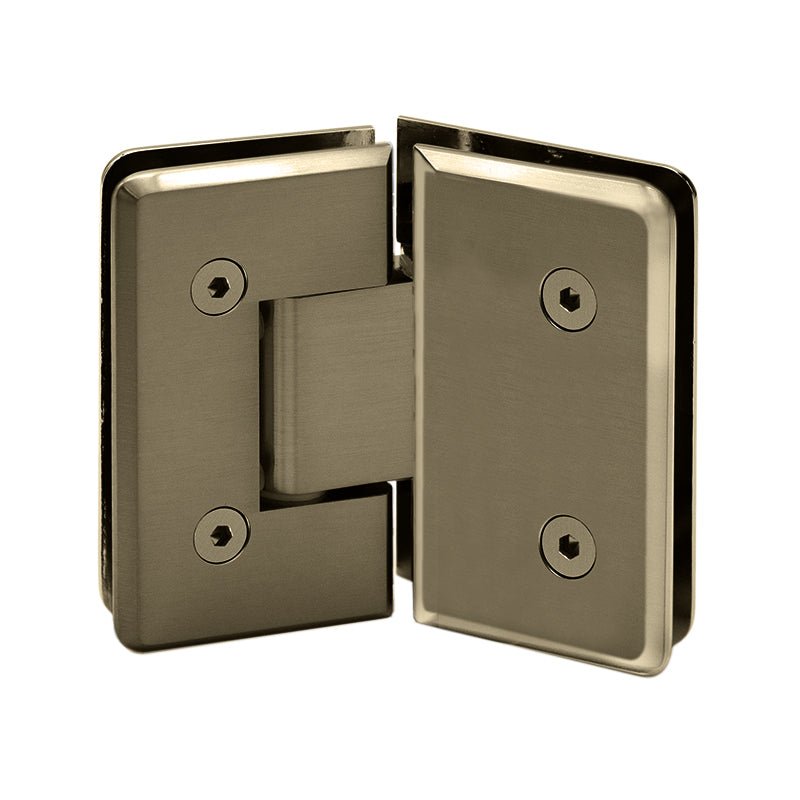

- For 3/8" or 1/2" Tempered Glass
- Used in 135 Degree Glass to Glass Applications
- Beveled Edges and Corners
- Solid Brass Construction
- Easily Converts to 5 Degree Offset
- One hinge per package. If you need two select quantity 2
Glass Specifications
| MAXIMUM DOOR CAPACITY |
3/8" (10 mm) GLASS
Approx. 5 lb./ft² |
1/2" (12 mm) GLASS
Approx. 6.4 lb./ft² |
| DOOR WEIGHT |
DOOR WIDTH |
| Using 2 Hinges |
110 LBS (50 kg) |
36" (914 mm) |
| Using 3 Hinges |
140 LBS. (64 kg) |
36" (914 mm) |
NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
